Terraform – Managing Common Resource Tags

EDIT: A few days after publishing this article, Hashicorp’s official AWS provider was updated to support default tags directly from the provider (which is very simple and saves all of the work detailed in this article). This only works with AWS so if you’re working in another cloud keep reading on, if you’re only working in AWS take a look at the Hashicorp blog post here which provides some very cool new functionality.

Given the scale and growth we encounter when working with cloud resources it’s essential to work with tags to properly manage the ownership, billing and other arbitrary data for related to our environments and resources (even the naming if you use AWS). Terraform already provides us with an excellent templating syntax in the form of HCL, in this post we’ll look at how to use pre-constructed maps of tags to assign the same metadata to all resources in a given environment.

A Note on Clouds and Input

Most Terraform resources already allow for the input of Tags, our aim here is to remove the manual input of the same tags for provisioning each different instance of every different resource and replace that with a single standard set.

We’ll be working with AWS in these examples, though the same logic also applies to GCP and Azure and applies to the vast majority of resources which can be provisioned on all platforms as they all accept tags in a Key: Value pair format.

Defining Tags as a Map

So let’s take a look at how we might define some tags in Terraform with some data that we might expect to use in a typical environment. First we’ll declare a single input variable as a map:

#--variables.tf

variable "default_tags" {
  type        = map
  description = "Map of Default Tags"
}

Then in an .auto.tfvars we will define the contents of the map:

default_tags = {
    Administrator = "Andy Welsh"
    Department = "IT"
    CostCentre = "ABC123"
    ContactPerson = "andy@tinfoilcipher.co.uk"
    ManagedByTerraform = "True"
}

Provisioning Resources

Now that we have defined a map, lets create some different resources, a couple of EC2 Instances and an S3 Bucket, as we see below instead of defining individual maps of tags we can simply set the tags argument as the variable var.default_tags:

#--main.tf

resource "aws_instance" "private_node" {
    count                       = 2
    availability_zone           = data.aws_availability_zones.available.names[0]
    ami                         = data.aws_ami.tinfoil_ubuntu.id
    instance_type               = "t2.micro"
    key_name                    = "tinfoilkey"
    subnet_id                   = local.subnet_private #--Remote State Lookup
    vpc_security_group_ids      = [local.sg_private] #--Remote State Lookup
    tags                        = var.default_tags
}

resource "aws_s3_bucket" "tinfoil_bucket" {
    bucket          = "tinfoilcipherstorage"
    force_destroy   = true
    server_side_encryption_configuration {
        rule {
            apply_server_side_encryption_by_default {
                sse_algorithm     = "AES256"
            }
        }
    }
    tags = var.default_tags
}

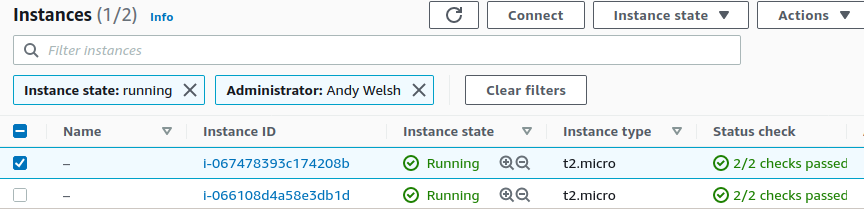

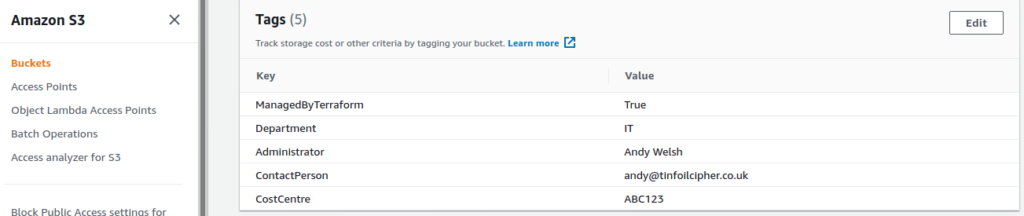

If we look at the AWS Console we can see that our tags have applied correctly upon running an apply:

Remote States and Locals

This configuration is fine if we’re working with simple resources, but it won’t go too far in enterprise deployments when we need to work with proper remote state lookups. For these scenarios we should work without defining our data as variable and configure the entire map within locals.

Lets take a look at an example of this, but work with some extra data looked up form variables:

#--variables.tf
variable "environment" {
    type        = string
    description = "Current Environment"
    default     = "dev"
}

data "terraform_remote_state" "tinfoil" {
    backend = "s3"
    config = {
        bucket = "tinfoilbucket"
        key     = "tinfoil-backbone.tfstate"
        region  = "eu-west-1"
    }
}

#locals.tf
locals {
    #--Lookup Remote State Network Data
    subnet_private  = data.terraform_remote_state.tinfoil.outputs.private_subnet_id
    sg_private      = data.terraform_remote_state.tinfoil.outputs.private_sg_id
    tag_admin       = data.terraform_remote_state.tinfoil.outputs.admin_name
    tag_department  = data.terraform_remote_state.tinfoil.outputs.department
    tag_costcentre  = data.terraform_remote_state.tinfoil.outputs.costcentre
    tag_contact     = data.terraform_remote_state.tinfoil.outputs.contactemail

    #--Construct Tag Data
    default_tags = {
        Administrator = local.tag_admin
        Department = local.tag_department
        CostCentre = local.tag_costcentre
        ContactPerson = local.tag_contact
        ManagedByTerraform = "True"
        Environment        = var.environment
    }
}

In the above example, most of our data is being looked up from a remote state and defined as locals (a single additional value named environment is being defined as a variable). All of these values are then being defined in a map as a new local named default_tags. We can now pass this map directly to any resource as a local:

resource "aws_instance" "private_node" {
    count                       = 2
    availability_zone           = data.aws_availability_zones.available.names[0]
    ami                         = data.aws_ami.tinfoil_ubuntu.id
    instance_type               = "t2.micro"
    key_name                    = "tinfoilkey"
    subnet_id                   = local.subnet_tinfoil_private
    vpc_security_group_ids      = [local.sg_tinfoil_private]
    tags                        = local.default_tags
}

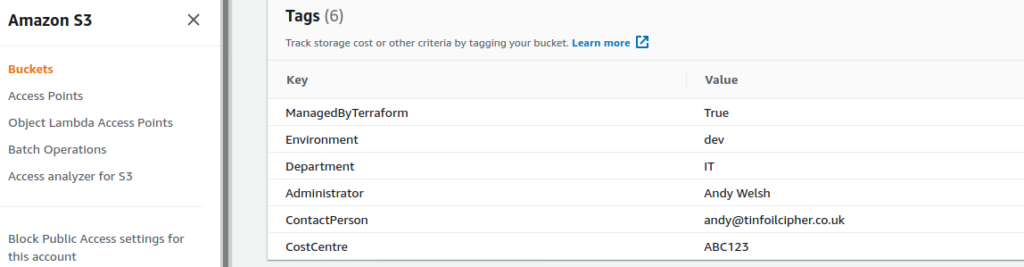

Once again, if we look at the console we can see our new map has been applied correctly:

Merging Default Tags and Resource-Specific Tags

Another scenario we might encounter is where we want to want to apply our set of Default Tags to all resources in an environment but also wish to include to some tags which are specific only to a certain resource. Terraform’s merge function allows us to manage this additional functionality on a per-resource basis.

The below shows an example of the merge function; demonstrating a merge of our existing default_tags map with another map containing a single tag of Name = “PrivateInstance-${count.index}”.

resource "aws_instance" "private_node" {
    count                       = 10
    availability_zone           = data.aws_availability_zones.available.names[0]
    ami                         = data.aws_ami.tinfoil_ubuntu.id
    instance_type               = "t2.micro"
    key_name                    = "tinfoilkey"
    subnet_id                   = local.subnet_tinfoil_private
    vpc_security_group_ids      = [local.sg_tinfoil_private]
    tags = merge(var.default_tags,{
        Name = "Instance-${var.environment_name}${count.index}"
        },
    )
}

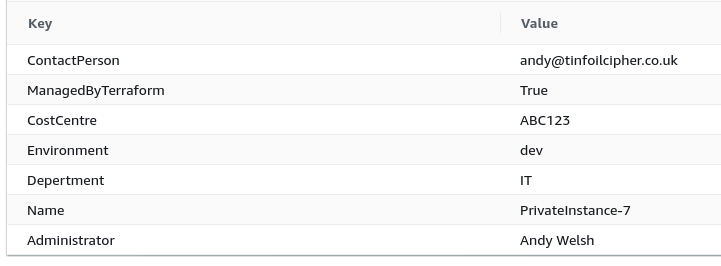

This will create each instance with a unique Name tag with an incremental number in the suffix of it’s Value:
