Recently I’ve been having some fun moving my lab and home infrastructure to Kubernetes. I had a feeling that deploying the UniFi Controller was going to be a bit of a painful process but it’s not so bad.
Has This Already Been Done?
The UniFi Controller has long been a Linux application so theoretically there are no real issues in the way. My initial searching led me to the now long deprecated official Helm git repo. This has clearly already been done before so that’s a good sign!
I found a few guides going through this process, a good start, but they all stopped dead at the start of the setup wizard. Suspicious. Similarly problematic is that the official UniFi chart has been abandoned for some time in the old official Helm repo and doesn’t seem to have ever been migrated.
I gave the old, orphaned chart a try to see if it was actually functional but ran in to some issues out of the gate:
- All of the services are ClusterIPs, so there is no way for Access Points to actually communicate with the Controller
- The first time setup wizard was impossible to complete and could not progress past the final screen (the Complete box was un-clickable
So I guess we know why all these guides don’t go any further than the login screen now!
I found a few other charts kicking around online but they all had problems that stopped them being installed, so eventually I decided just to take the abandoned official chart and patch it up.
Installation is a pretty painless process (now that a suitable chart exists). First we need to add the Helm repo:
helm repo add tinfoilcharts https://tinfoilcipher.github.io/tinfoilcharts
Then we’ll need to define some values for configuration, importantly I’ve made sure that the relevant services are being exposed correctly on the Controller.
We’ll also need to set a Timezone (after much debugging, this appears to be at the root of the issues with the setup wizard that I encountered). In the values below, pay particular attention to the two IP addresses for TCP and UDP services. These can technically be the same address, but if you have enough to spare you may as well split them up.
#--values.yaml environment: timezone: "Europe/London" #--Setting this stops the setup wizard breaking stdout: true service: ports: webapi: 8443 tcpLoadBalancerIP: 192.168.1.220 #--Set as relevant. This is the IP your Access Points will communicate over regularly udpLoadBalancerIP: 192.168.1.221 #--Set as relevant. This is the IP your Access Points will discover the Controller on ingress: enabled: 'true' className: nginx #--If you're using nginx, I am annotations: cert-manager.io/cluster-issuer: ca-issuer #--Or whatever your issuer is called nginx.ingress.kubernetes.io/rewrite-target: / #--This bunch of annotations are needed if you're nginx.ingress.kubernetes.io/proxy-body-size: "0" #--using an nginx ingress controller, which I keep nginx.ingress.kubernetes.io/backend-protocol: "HTTPS" #--mentioning...I'm assuming you are hosts: - host: unifi.tinfoilcipher.co.uk #--YOUR HOSTNAME HERE paths: - path: / pathType: ImplementationSpecific tls: - secretName: unifi-certificate hosts: - unifi.tinfoilcipher.co.uk #--YOUR HOSTNAME HERE
Add any other values as you see fit, then we can create a namespace and install:
kubectl create ns unifi helm install unifi -n unifi tinfoilcharts/unifi-controller -f values.yaml
This should kick off the installation process, it’s worth pointing out that the Controller is at it’s heart quite a large clunky Java application and it takes quite some time to start up, so don’t be too concerned if it takes a while to come up. Monitor the process with the below commands:
#--Watch for the Pod becoming ready kubectl get po -n unifi -w # NAME READY STATUS RESTARTS AGE # unifi-controller-58d74d8b5f-dx4p9 0/1 Running 0 1m #--Tail the logs to watch the boot process: kubectl logs -n unifi unifi-controller-58d74d8b5f-dx4p9 -f
Once the Controller has booted, we can access the UI via the hostname we provided in the values.yaml (assuming there are no issues with the setup wizard) and we will be asked to provide credentials on the first setup.

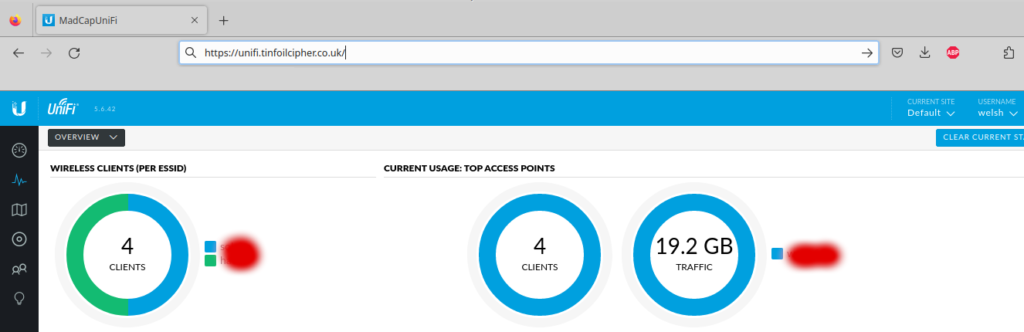

For the sake of completeness and to confirm everything works:
Fairly short and straight forward post. In the next one we’ll get more complex and look at how we can leverage cert-manager‘s PKI and combine it with freeradius in order to deliver an enterprise grade WPA-TLS wireless network from inside Kubernetes.
